dspblok™ DSP Function Modules
Danville's dspblok™ DSP Function Modules are highly integrated DSP cores that are easy to incorporate into embedded applications. Each dspblok includes a DSP, flash, eeprom and switching power supplies for the core power supply. A dspblok may also include a user programmable FPGA.
Our most popular dspblok DSP Modules are based the fourth generation Analog Devices ADSP-214xx family of SHARC DSPs. These modules include USB interfaces that can be used to upload your application with our built-in dspBootloader(tm) support. This simplifies manufacturing and also opens the door to field updates without the need of an external programmer.
The dspblok family has been extended to include I/O and power supply modules. You can create complete systems with dspbloks. The small size (60mm x 60mm) allows these systems to fit in spaces where a powerful COTS DSP solution was not feasible.
Earlier dspblok DSP modules include the dspblok 21161, dspblok 21261zx, dspblok 21262zx and dspblok 21262sx. Contact us if you have a need for one of these earlier products.

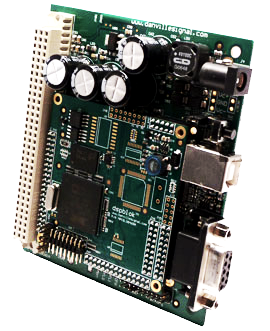

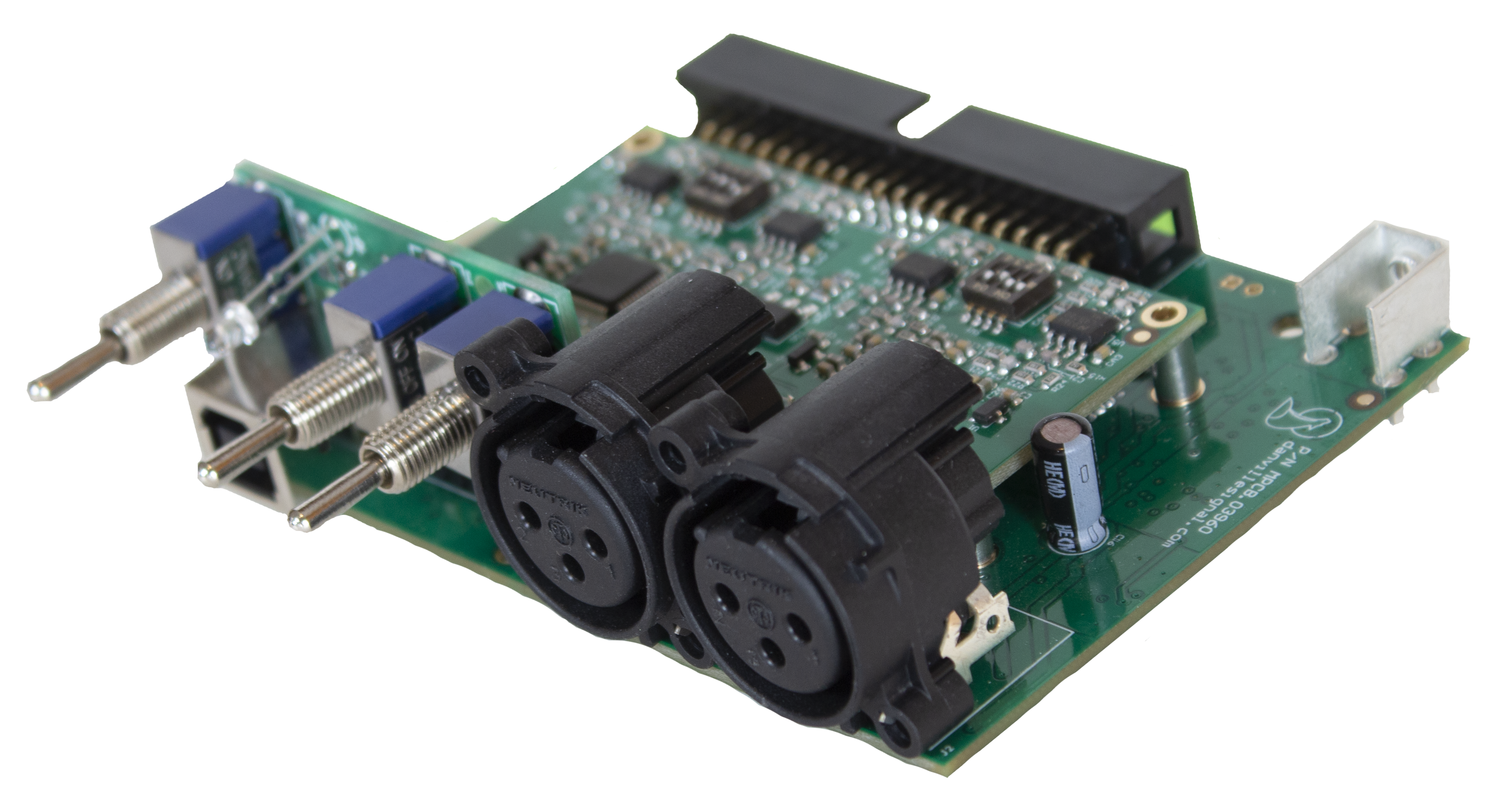

dspstak™ DSP Engines and I/O Modules
Danville's dspstak™ DSP Engines and I/O Modules allow systems integrators to create SHARC based signal processing systems. Each dspstak™ consists of two or more modules: a DSP engine and signal conditioning / data conversion I/O Module(s). Since a dspstak™ I/O module is separate from the DSP module, custom interfaces can be created quickly and inexpensively.
Software development is easy with the dspstak. In addition to software examples, each dspstak family has a dspstak DSP Engine with ICE version. The ICE versions include a licensed version of the Analog Devices' EZ-Kit debugger. It is supported by both the KIT (free version) and full versions of Visual DSP++.
Danville has many different dspstak DSP Engines and dspstak I/O Modules. more >>

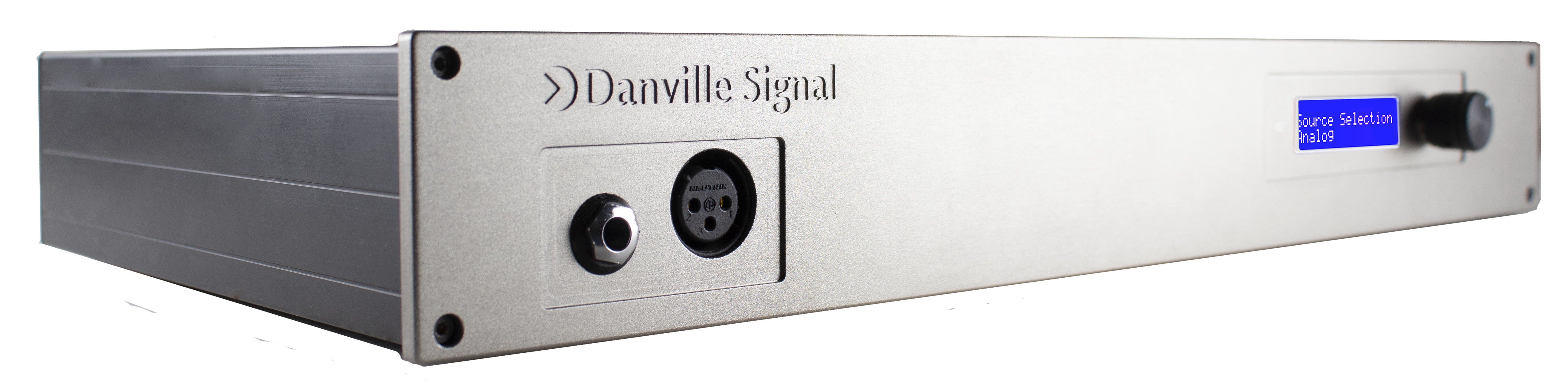

High Performance Audio
Danville's provides many different high performance audio subsyetms to OEMs & ODMs. These include DSP based crossovers and high performance wireless audio systems. We provide USB Audio Class 2 solutions that are ideal for modern music server applications.

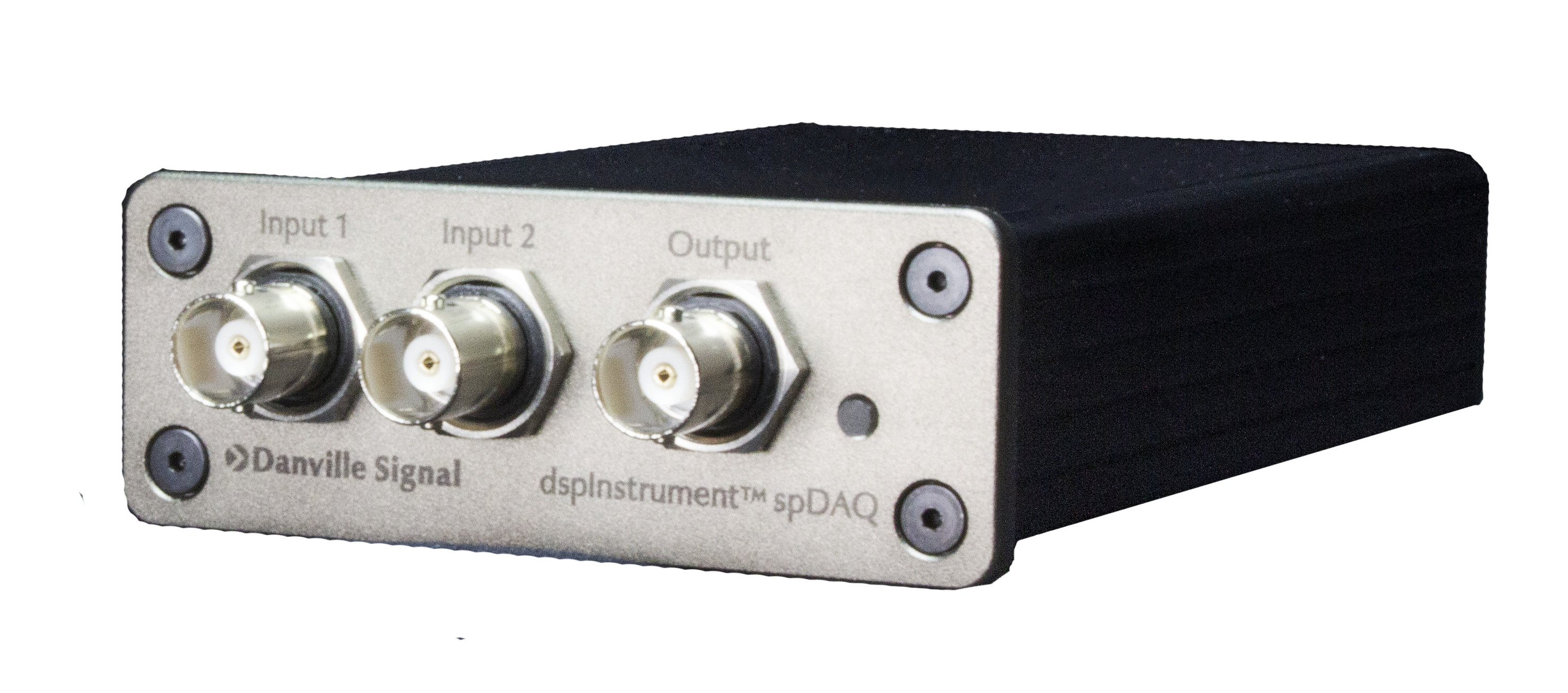

The dspInstrument Family
The DSP-based Instrument Family are semi custom products that are tailored to specific markets and applications. They are available in a small extruded housing or may be purchased as PCB assemblies. The boards are a two piece composite, a dspblok DSP engine and a customized I/O-power supply motherboard. The dspInstrument targets acoustics, vibration and underwater acoustics applications as well as other general purpose audio based instrument needs.
They are well suited for small quality control systems and test cells, automatic level controls, audio limiters, signal splitters and test generators. more >>
Analog Devices Development Tools
Danville is an authorized reseller for Analog Devices' development tools.
These include Visual DSP++, Crosscore Studio and Emulators for the SHARC and Blackfin DSP families. We have added the development tools to our product line so that Danville can be a one-stop shop for our dspstak and dspblok customers, but you don't have to be a dspblok or dspstak customer to purchase your ADI development tools from us. If you have a need for any of the ADI development tools, we certainly would appreciate your order. more >>
Air Traffic Control Products
The DSP-8200 Card Cage Family consists of a 5-1/4 x 19 inch rack mounted card cage chassis, 12 plug-in DSP modules, a Control Module, and two redundant Power Supply modules. Each DSP module has two independent audio channels.
The DSP-8200e Tone Suppression and Noise Reduction System is in this product line. This system is also supports a ground-to-ground tone suppression mode to support the challenges unique to these circuits. more >>
